SmartGen HMU8-9570 Hybrid Energy Controller

* All prices on this website are retail in USD on EXW incoterms

(0)

Technical Parameters

Display        8-inch LCD
Operation Panel        Rubber
Language    Chinese & English
Monitor Interface    RS485
Programmable Interface        RS485
CANBUS(1939)    ●
DC Supply    DC(10~35)V
Case Dimensions(mm)    221*163*51
Panel Cutout(mm)    205*147
Operating Temp.        (-25~+70)℃
Weight(kg)    1.3

Product Overview:
HMU8-9570 Hybrid Energy Controller is used for micro grid management system composed of solar energy, wind energy, energy storage battery and genset, which can monitor data via RS485 port. It can also control the start and stop of gensets in system according to load or storage battery SOC, and control output power by setting genset voltage, frequency center point and droop percentage. In addition, it has economy and power maintaining running modes.

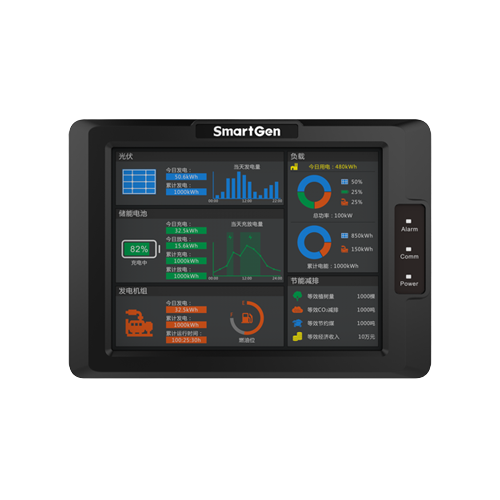

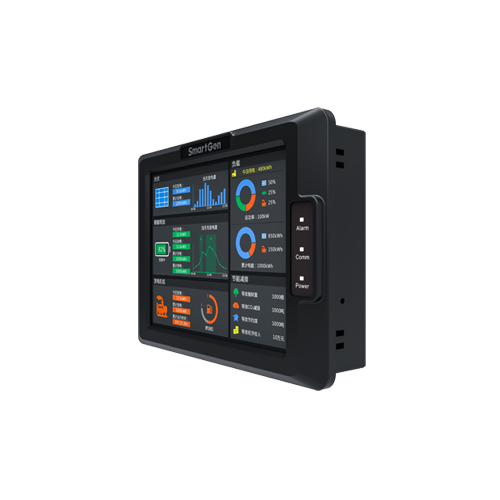

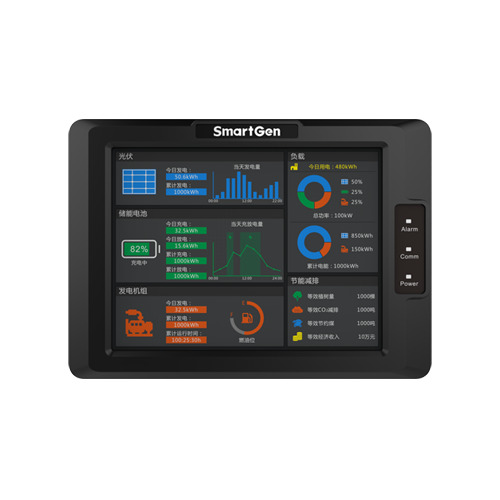

HMU8-9570 Hybrid Energy Controller applies 8-inch 800*600 resolution capacitive touch screen with Chinese and English display. It is simple to operate and reliable to run.

HUM8-9570 hybrid energy controller can be used for data monitoring and control of inverter, converter and genset, which is suitable for micro grid hybrid energy system composed of photovoltaic, storage energy and genset, also for hybrid energy system composed of storage energy and genset.

Main characteristics are as bellow:

Display module adopts 8-inch LCD screen with 800x600 resolution, HMI display, capacitive touch screen operation. Optional Chinese and English interface can be chosen on site, making commissioning convenience for factory personnel;
With power indicator, communication indicator and alarm indicator;
The module has 10-level brightness, can be adjusted according to different environments;
The homepage of display module can display PV current day power bar chart, current day charge/discharge curve diagram of energy storage battery, load power and accumulated energy pie chart;
Display energy-saving and emission reduction parameters;
Set genset frequency, voltage center point and droop percentage;
Set RS485 communication port parameters on the module, which cannot be lost even in case of power outage. All module parameters can be adjusted through upper computer software via PC;
Two running modes: economy and power maintaining;

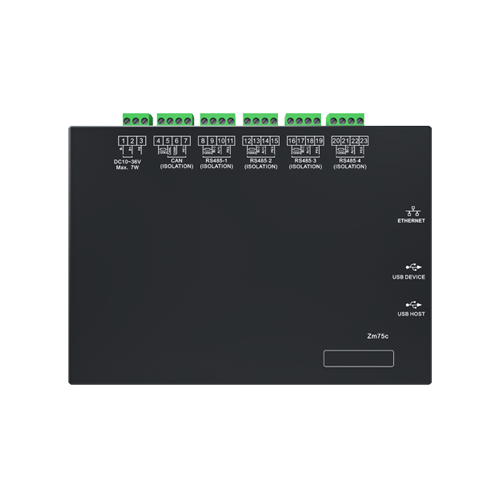

With 4 RS485 ports, 1 CANBUS port, 1 ETHERNET port;
Wide power supply range DC(10~35)V, suitable for different starting battery voltage environment;
USB equipment port for upgrading display module firmware;
USB master port for upgrading screen picture and word stock of display module;
IP65 waterproof level is achieved with the help of rubber-ring gasket between shell and control panel;
Controller is fixed by metal clips;
Modular structure design, pluggable terminal, built-in mounting, compact structure with easy installation.
