Technical Parameters:
Display LCD
Monitor Interface RS485
Case Dimensions(mm) 366*293*58
Panel Cutout(mm) 352*279
Product Overview:
HES9510-RM hybrid energy monitoring system is suitable for remote monitoring single/multi HGM9510N genset controllers, HGM9560 bus tie mains parallel controller, HES9510 hybrid energy controller, which can realize auto start/stop/closing/opening, data measurement, alarm display functions of controller. It fits with LCD display and touch screen, so as to make this module easy and reliable to use.

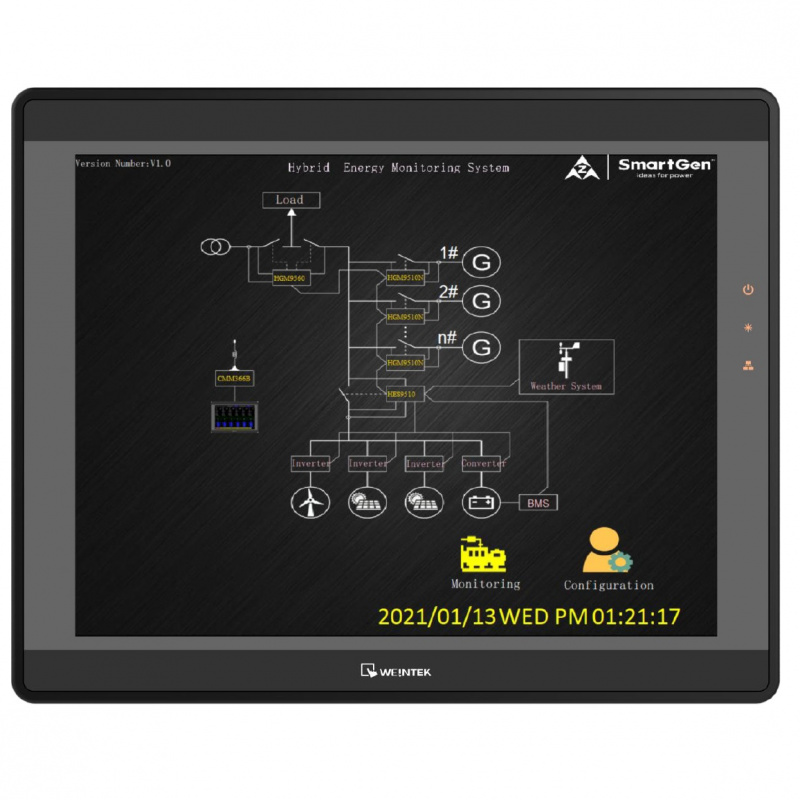

HES9510-RM controller based on high-end microprocessor design, communicates with HGM9510N genset controller and HES9510 hybrid energy controller via network interface, communicates with HGM9560 genset bus tie mains parallel controller via RS485. The parameters can be read directly through communication interface and displayed on the HES9510-RM screen, which can realize display general system layout and branch system parameters.
PERFORMANCE AND CHARACTERISTICS
Single or up to 6 HGM9510N genset controllers can be monitored remotely;
Single HGM9560 bus tie mains parallel controller can be monitored remotely;
Single HES9510 hybrid energy controller can be monitored remotely;
High-end ARM microprocessor as the core, LCD with backlight, visualization display, touch screen operation;

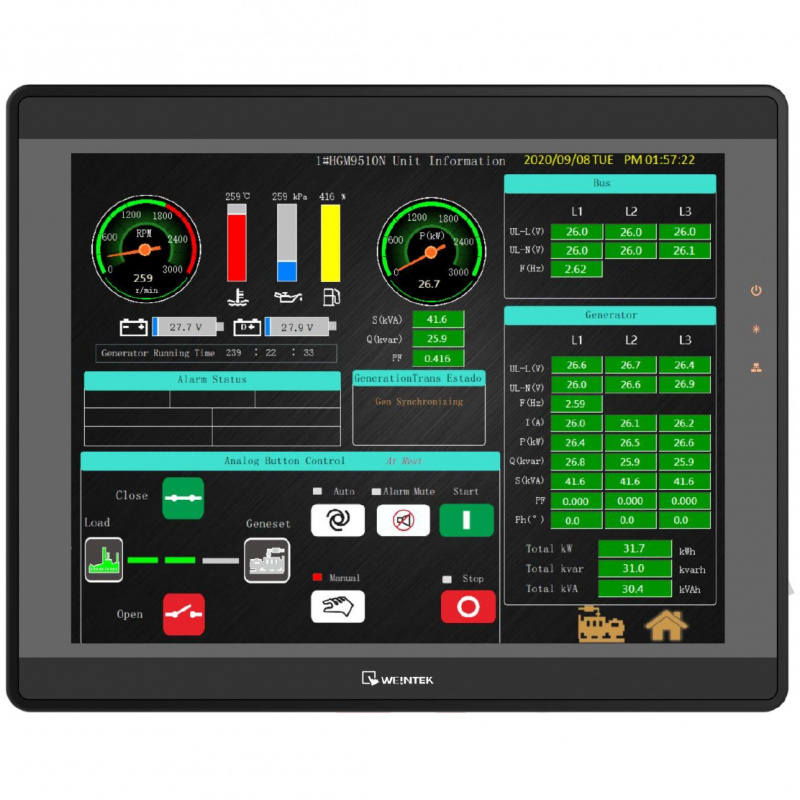

Real-time display genset parameters and alarm information that detected by controller;

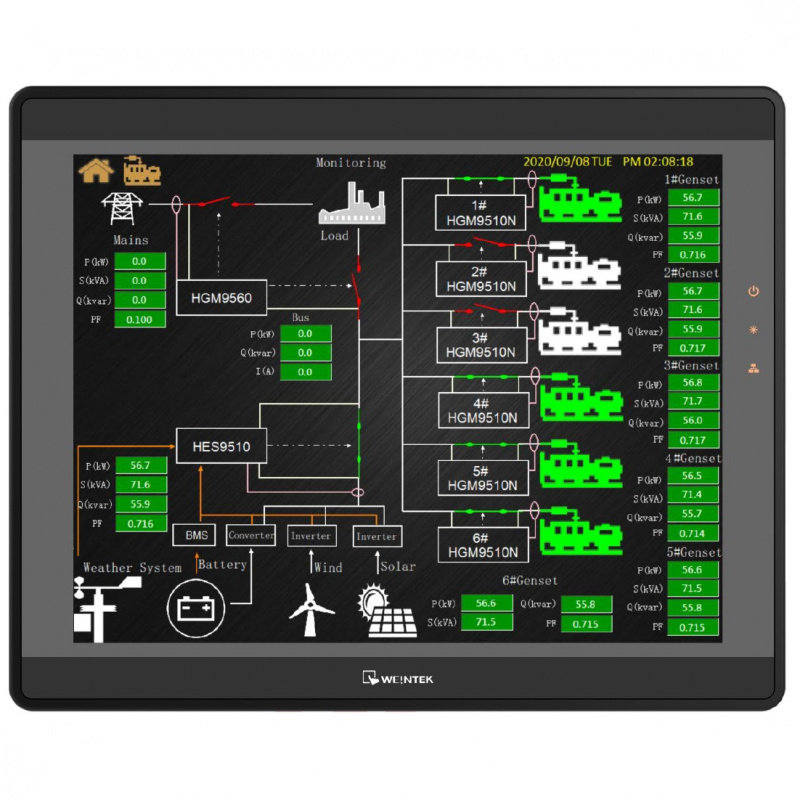

HES9510-RM visualization display monitors the detailed parameters of controller and is able to control the push-button operation;
Modular design, pluggable wiring terminals, embedded mounting, compact structure and easy installation.
