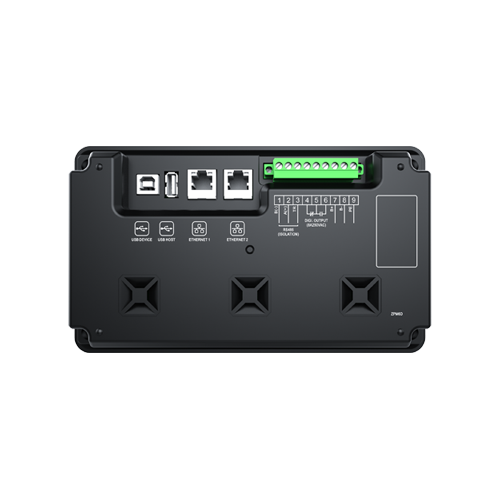

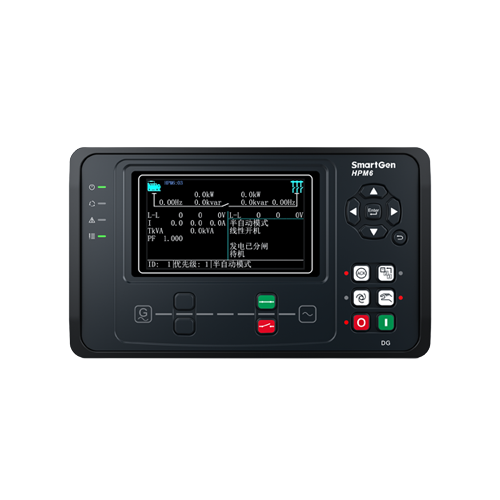

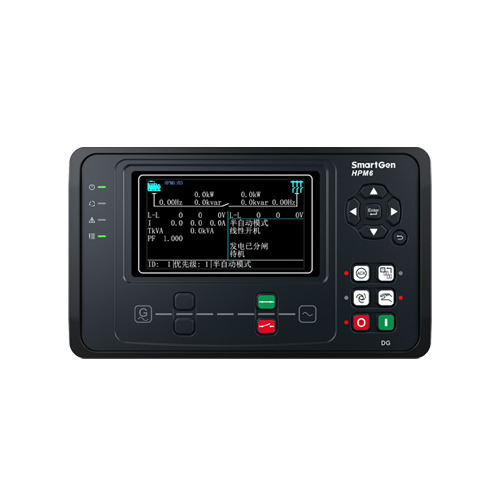

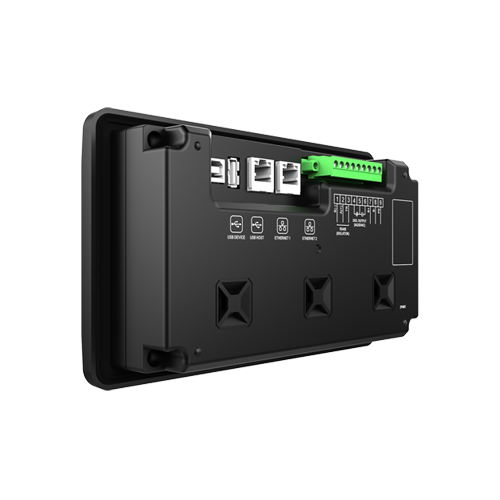

SmartGen HPM6D power management controller display module

Technical Parameters:
Display        4.3-inch LCD
Operation Panel        Silicon Rubber
Language    Chinese & English & Others
DC Supply    DC(8～35)V
Case Dimensions(mm)    220*130*52
Panel Cutout(mm)    201*111
Operating Temp.        (-25~+70)℃
Weight        0.57kg

Product Overview:

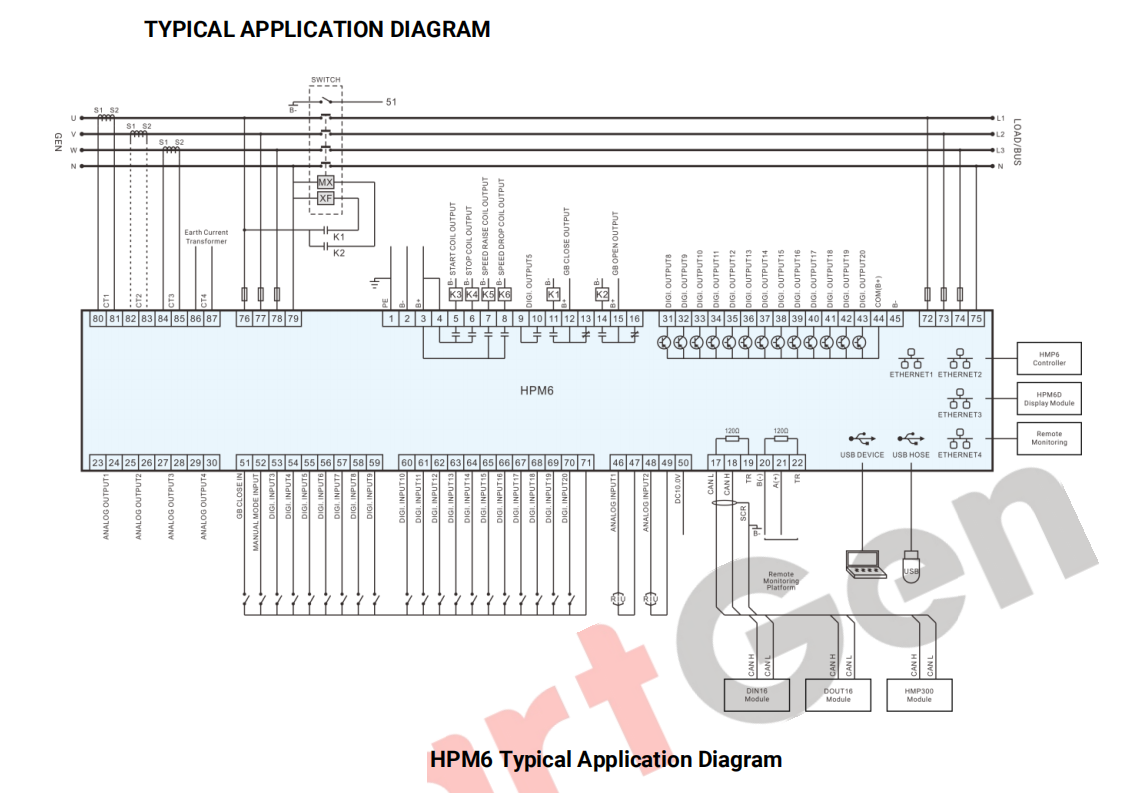

HPM6 power management controller adopts split-type design, which is composed of display module HPM6D and master control module HPM6M.

4.3-inch LCD, 480x272 resolution with backlight, Chinese, English and other languages display interface;

Suitable for 3-phase 4-wire, 3-phase 3-wire, 2-phase 3-wire and single phase systems with frequency 50/60Hz;

PLC function enables user to define control logic;

User-defined system SLD function;

3-level password protection, two password permissions can customize user configuration items, i.e. configuration items that user can modify can be customized;

3 accumulated data, two user accumulated data (user A and user B), user can clear accumulated data. 3 accumulated data are simultaneously and synchronously calculated, but user A and user B data can be cleared at any time;

Parameter setting: parameters can be modified, most of them can be configured from front panel of the controller and all of them can be configured using PC via USB, RS485 or RJ45 ports;

Alarm log, which cannot be lost even in case of power outage, maximum 500 pieces can be recorded;

Event log, which cannot be lost even in case of power outage, maximum 500 pieces can be recorded;

User-defined protocol content function;

User-defined bus data function, can read other genset controller data from one controller;

Harmonic analysis and generator voltage, current waveform display function;

Monitor data curve at real time;
