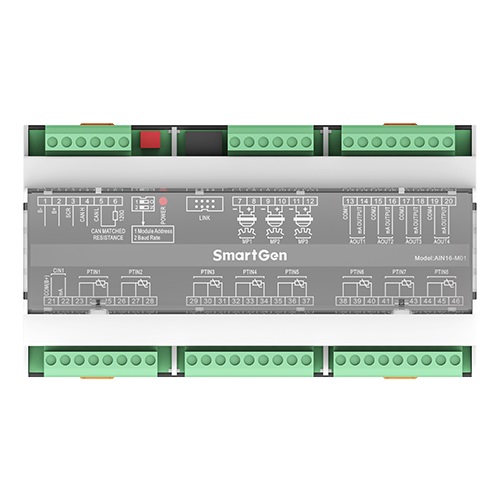

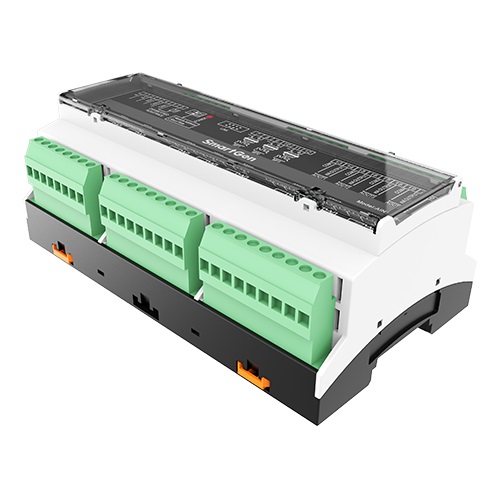

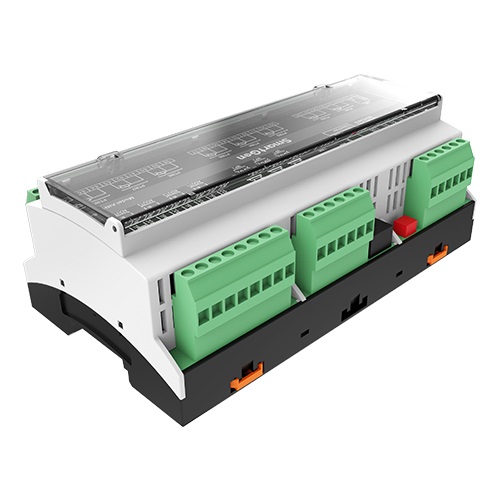

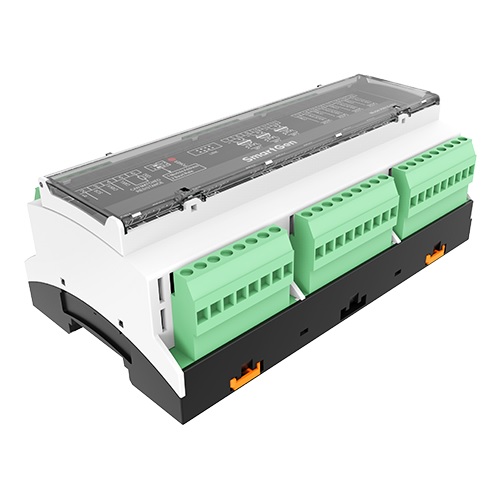

SmartGen AIN16-M01 Marine Engine Controller, Analog Misc Module

* All prices on this website are retail in USD on EXW incoterms

(0)

Technical Parameters:
DC Supply   DC(18~35)V
Case Dimensions(mm)  161.6*89.7*60.7
Operating Temp.  (-25~+70)℃
Power Consumption  <0.5W
Weight  0.33KG

Product Overview:
AIN16-M01 analog integrated module contains 8 PT100 sensor input channels, 3 speed input channels, 4 4~20mA output channels and one 4~20mA input channel. The data are transmitted to the HMC9000 controller for processing via CANBUS port, then HMC9000 transfers 4~20mA data back into AIN16-M01 module via CANBUS port and AIN16-M01 outputs corresponding 4~20mA signals. Values can be set for each sensor via HMC9000 controller as demands.

PERFORMANCE AND CHARACTERISTICS

32-bit ARM micro-processor with high integration of hardware and more reliable;
Must be used with HMC9000 together;
CANBUS communication baud rate can be set as 250kbps or 125kbps via dial switch;
Module address can be set as 1 or 2.
Widely power supply range DC(18~35)V, suitable to different starting battery voltage environment;
35mm rail mounting type;
Modular design, pluggable terminal, compact structure with easy installation.
