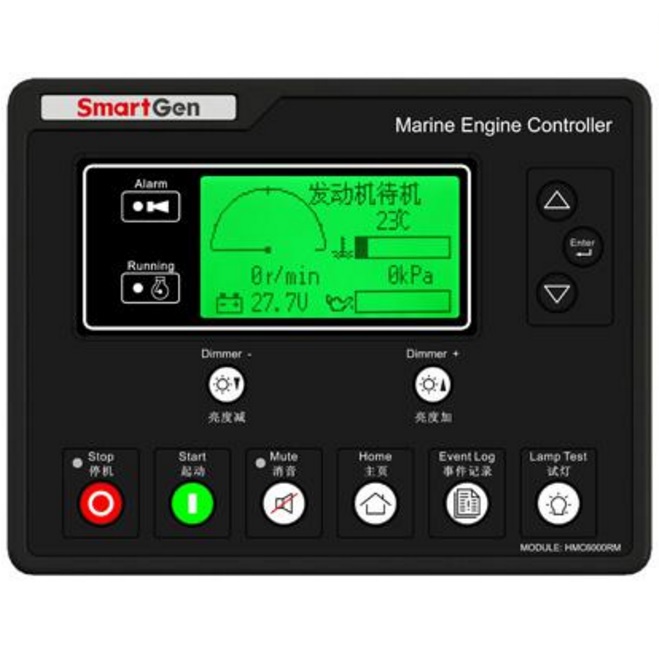

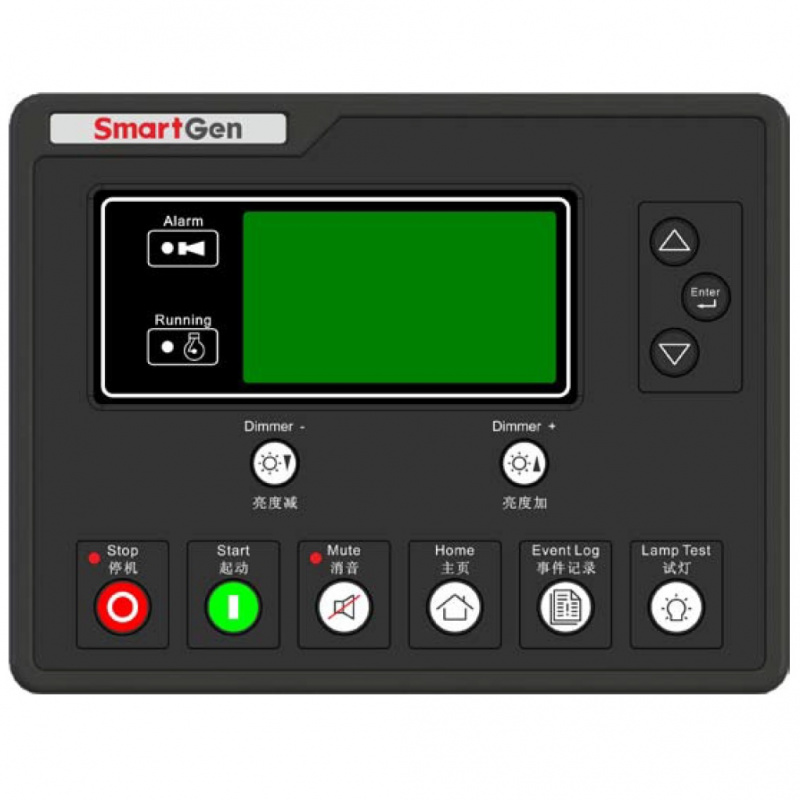

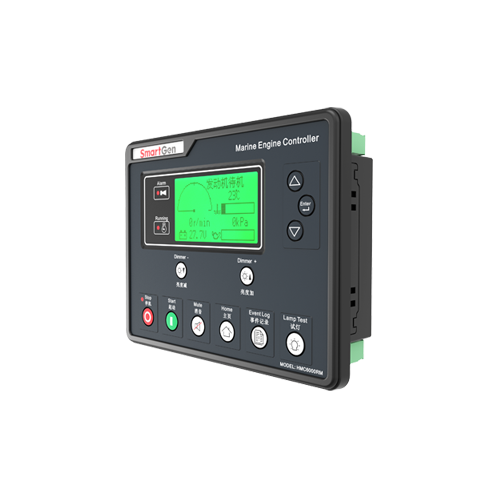

SmartGen HMC6000RM Marine Engine Controller, Remote monitoring, suitable for HMC6000 series, CCS

Technical Parameters:
Displa  LCD(132*64)
Operation Panel  Silicon Rubber
Language  Chinese & English
CANBUS Port Extension  ●
Remote CANBUS Port  ●
DC Supply  DC(8～35)V
Case Dimensions(mm)  197*152*47
Panel Cutout(mm)  186*141
Operating Temp.  (-25~+70)℃

Product Overview:
HMC6000RM/RMD controller integrates digitization, intelligentization and network technology which are used for remote monitoring system of single unit to achieve automatic start/stop, data measure, alarm protection and record checking. It fit with 132*64 liquid display, optional Chinese/English languages interface, and it is reliable and easy to use.

PERFORMANCE AND CHARACTERISTICS:

1. 32-bit ARM micro-processor, 132*64 liquid display, optional Chinese/English interface, push-button operation;

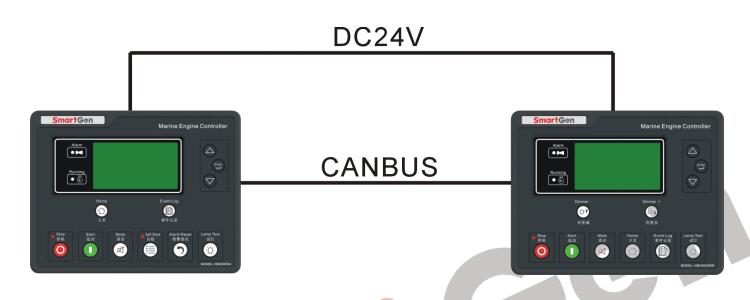

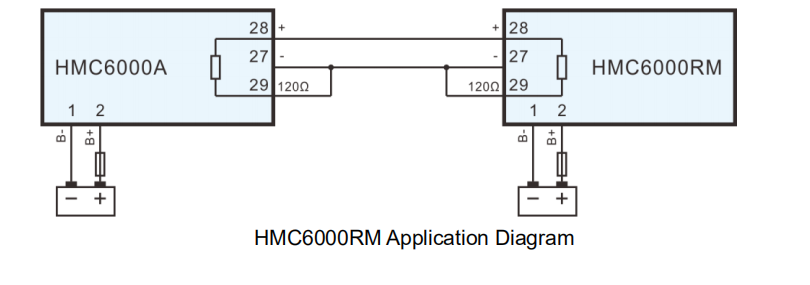

2. Connect to HMC6000S/E module via CANBUS port to achieve remote start/stop control;
3. With monitor mode which can achieve check data only but not control the engine.
4. Modular design, self extinguishing ABS plastic enclosure and embedded installation way; small size and compact structure with easy mounting.
